Materials:

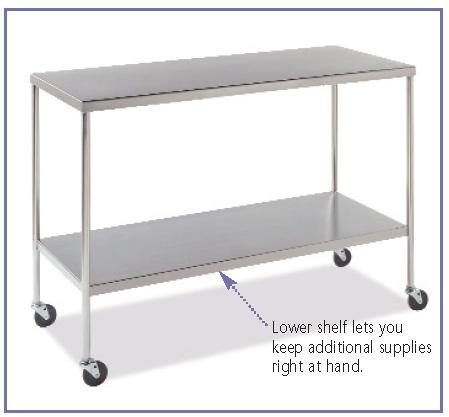

Table with Shelf:
Top: 18 gauge, stainless steel, type 304, #4 finish
Brace: 18 gauge, stainless steel, type 304, #4 finish
Legs: 16 gauge, 1" dia. tubular stainless steel, type 304, buffed finish
Shelf: 18 gauge, stainless steel, type 304, #4 finish
Brace: 18 gauge, stainless steel, type 304, #4 finish
Casters: 3" dia. non-marking, swivel ball bearing, zinc plated
Retaining Rail: .375" dia., stainless steel, type 304, bright buffed finish
Mounting Tabs: 12 gauge, stainless steel, type 304, bright buffed finish
Drawer Unit:
Suspension Rails: 16 gauge, stainless steel, type 304, #4 finish
Housing:
Back and Sides: 20 gauge, stainless steel, type 304, #4 finish
Spreaders: 20 gauge, stainless steel, type 304, 2B finish
Slide Mounting Panel: 20 gauge, stainless steel, type 304, 2B finish
Drawer:
Body and Front: 22 gauge, stainless steel, type 304, #4 finish
Pull: dull chrome
Slide Members, Housing/Drawer: full extension, ball bearing, zinc plated
Fasteners:
Machine Screws: stainless steel, type 18-8
Lock Nuts: stainless steel, type 18-8, nylon insert
Construction:
Tables with Cross Brace or Shelf:
Top: one piece with front, back, and both ends hemmed; hemmed edges are flanged down creating a unitized top and double-thick angle frame; corners are fully heli-arc welded; welds are ground smooth and polished to a uniform finish
Brace: formed channel with hemmed edges; spot-welded to the Top's underside
Legs: fully heli-arc welded to the unitized Top and double-thick angle frame in each corner (welds are concealed)
Cross Members: ends are coped for uniform fitting joints and fully heli-arc circumference-welded to Legs; welds are buffed to a smooth, bright polished finish
Shelf: one piece with front, back, and both ends hemmed; hemmed edges are flanged down creating a unitized shelf and double-thick angle frame; corners are notched to fit the leg contour; unitized shelf and double-thick angle frame's vertical flanges are fully heli-arc welded to the Legs (welds are concealed) (Note: In models where Shelf is used, the lower Cross Members and Cross Brace are eliminated.)
Brace: formed channel with hemmed edges; spot-welded to the Shelf's underside
Casters: stem-mounted into caster socket with caster socket inserted into bottom ends of Leg
Retaining Rail: one piece, 3-sided, with formed ends
Mounting Tabs: fully heli-arc welded to the ends and along the back of the rail; welds are buffed to a smooth, bright polished finish
Rail is fastened to Top's back and end flanges with machine screws and lock nuts
Drawer Unit:
Suspension Rails: formed angles; vertical flanges are fully heli-arc welded to the unitized top and double-thick angle frame's vertical flanges (welds are concealed)
Housing:
Back and Sides: one piece wrapper; bottom edge is hemmed; top and bottom edges are flanged in; back and sides are formed with 90 degree bends; the front flanges of the sides are formed to create a vertical recessed drawer jamb; wrapper is inserted into the Top with back, sides, and front flanges spot-welded to Top's flanges
Spreaders: formed channels; heli-arc welded to Sides' top and bottom flanges (welds are concealed)
Slide Mounting Panel: formed channel punched to accommodate housing slide members; heli-arc welded to Sides' top and bottom flanges (welds are concealed)
Drawer:
Body: one-piece punched and formed creating the drawer's inner front, back, sides, and bottom with radius formed bottom bends and coved corners; front, back, and both sides' top edges are flanged out; front, back and sides are spot welded
Outer Front Panel: one piece punched with top edge formed into a channel; bottom edge and side edges are formed into channels with flanges; Outer Front Panel's top edge channel overlaps Drawer's inner front panel top edge with bottom and side flanges spot welded to the Drawer Body's bottom and sides
Pull: fastened to Drawer Front with machine screws
Slide Members, Housing/Drawer: riveted to Housing's Slide Mounting Panel and Drawer's sides
General: Drawer Unit is inserted into Suspension Rails and heli-arc welded (welds are concealed)
|
|
|
